ECORECTO SAFETY STANDARD

Every service and recovery truck is equipped with:
• advanced medical kit
• AED defibrillator
• emergency clothing for the driver
• rescue lighting and safety equipment
Our goal is maximum safety for drivers, customers and the public.

Vehicles available for hire with driverČKD
Praga V3S AD 080 -  8 t
Tatra 815 AV 14 -  14 t
Tatra 148 AD 20 -  20 t
Tatra 815 AD 20T - 20 t
Tatra 815 AD 28 - 28 t

Conditions for delivery of the vehicle to the customer's location as agreed !!!

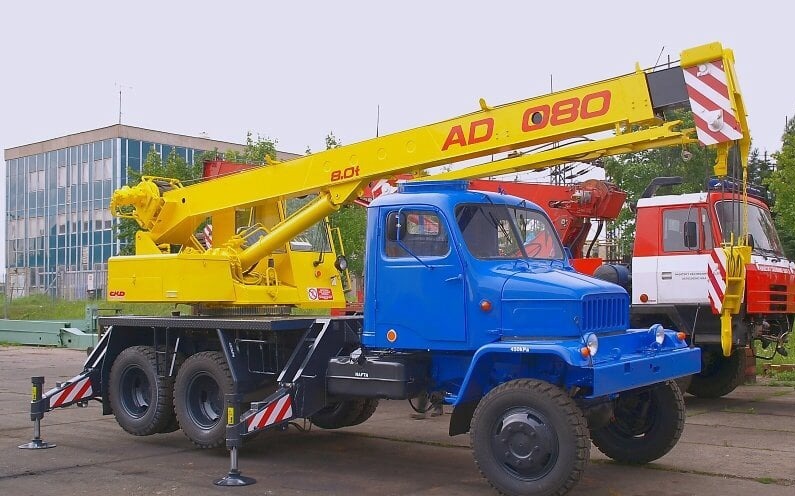

Praga V3S AD 080 AWD SPECIAL CRANE OFFROAD

The Praga V3S AD 080 mobile crane is a mobile crane with a fully rotating superstructure mounted on the chassis of the legendary Praga V3S off-road vehicle. It was manufactured by ČKD ČSSR Slaný.
Made in the Czechoslovakia

Crane superstructure
(AD 080)

Crane superstructure (AD 080)
Boom: Telescopic, two-piece, folding
Drive: Diesel-hydraulic (powered by the chassis engine via a gearbox and hydraulic pump)
Control: All working speeds are continuously adjustable
Rotation: Unlimited in both directions
Stabilization: Hydraulic support legs

The crane was designed for construction and assembly work, allowing loads to be handled even while driving (under specific conditions).

Data and Parameters

Here are the technical data and parameters:
Basic technical data
Lifting capacity: 8 tons at a reach of 3 m
Maximum lifting height: 13 m (0.5 t)
Total weight: approx. 10,315 kg – 10,500 kg
Chassis: Praga V3S (6x6)
Engine (chassis): Tatra 912-4 (air-cooled six-cylinder diesel)
Engine power: 72 kW (98 hp) at 2100 rpm
Maximum speed: approx. 60 km/h

Dimensions (approximate)
Length: 7050 mm
Width: 2400 mm
Height: 3300 mm

„You order. We deliver — according to your schedule and site conditions.“

The Tatra AD 28 AWD

The Tatra AD 28 is a heavy truck crane built on a Tatra T 815 chassis (most often 6x6.1) with a lifting capacity of 28 tons, designed for construction and assembly work even in difficult terrain. Here are the detailed technical data:
Lifting capacity and crane superstructure
Maximum lifting capacity: 28,000 kg (at a reach of 3 m)
Maximum load capacity at full extension (26 m): 2 tons (depending on angle)
Maximum load capacity at max. reach with extension: approx. 31.2–31.4 m
Boom: Four-piece telescopic (9.5 m–26 m)
Lattice extension (crane jib): 5.4 m to 8 m
Working range: 360° (with restriction above the front axle at an angle of 2x45°)
Crane drive: Diesel-hydraulic (hydrostatic power transmission)

Crane superstructure
Chassis and engine

Chassis and engine
Chassis: Tatra T 815 PJ 28 170 6x6.1
Drive: 6x6 (or 6x6x2)
Engine: Air-cooled V8 Tatra T 3-928-32
Engine displacement: 12,667 cm³
Engine power: 170 kW / 2200 min-1


Data and Parameters

Dimensions and weight
Total weight: 28,260 kg – 28,800 kg
Length (in transport position): approx. 10,750 mm
Width: 2,500 mm
Height: 3,420 mm (with forward-mounted cab for lower overall height)
Maximum speed: 70 km/h


Fuel consumption: approx. 45 l/100 km
Features: Equipped with overload protection and high voltage indicator.

Our vehicles cannot be stopped by terrain or roads

The Tatra JAMAL AWD

Body and chassis
Class Heavy truck
Body style conventional
Powertrain
Engine Tatra diesel air-cooled V8
270kW-325kW
Transmission Tatra
10 speed manual
14 speed manual
Auxiliary Tatra two-speed

Crane superstructure
Chassis and engine

Chassis basic : Tatra T 815 PJ 28 170 6x6.1
Drive: 6x6 (or 6x6x2)
Engine: Air-cooled V8 Tatra T 3-928-32
Engine displacement: 12,667 cm³
Engine power: 170 kW / 2200 min-1


Data and Parameters

Dimensions
Wheelbase 3,700 mm (145.7 in) + 1,450 mm (57.1 in)
4,090 mm (161.0 in) + 1,450 mm (57.1 in)
Length 7,990 mm (314.6 in)
8,480 mm (333.9 in)
Width 2,550 mm (100.4 in)
Height 3,400 mm (133.9 in)
Curb weight 10,420 kg (22,970 lb) empty
38,000 kg (84,000 lb) loaded
Chronology
Predecessor Tatra T148

We also offer the import of special new vehicles for complex and demanding terrain.

The Tatra NEW AWD SPECIAL TRUCK US VERSION

Body and chassis
Class Heavy truck
Body style conventional
Powertrain
Engine Tatra diesel air-cooled V8
270kW-325kW
Transmission Tatra
10 speed manual
14 speed manual
Auxiliary Tatra two-speed

Crane superstructure
Chassis and engine

Chassis basic : Tatra T 815 PJ 28 170 6x6.1
Drive: 6x6 (or 6x6x2) and etc.
Engine: Air-cooled V8 Tatra T 3-928-32
Engine displacement: 12,667 cm³
Engine power: 170 kW / 2200 min-1


Data and Parameters

Dimensions
Wheelbase 3,700 mm (145.7 in) + 1,450 mm (57.1 in)
4,090 mm (161.0 in) + 1,450 mm (57.1 in)
Length 7,990 mm (314.6 in)
8,480 mm (333.9 in)
Width 2,550 mm (100.4 in)
Height 3,400 mm (133.9 in)
Curb weight 10,420 kg (22,970 lb) empty
38,000 kg (84,000 lb) loaded
Chronology
Predecessor Tatra T148

RENTAL TERMS
Equipment Rental with Operator — Reliable Mobile Service

The minimum chargeable time begins when our equipment departs for the job site and ends when work with our equipment is completed on site.

Rental Terms - Minimum rental period: 12 billable hours.
This includes equipment preparation, transportation to the job site, on-site operation, and return.

Equipment is provided exclusively with a qualified driver/operator.

The customer is responsible for ensuring safe access and proper site readiness before work begins.

Work is performed according to actual site conditions and instructions from the customer’s responsible representative.

The operator has final authority regarding operational safety.

Minimum billable time begins when our equipment departs for the job site and ends when work with our equipment is completed on site.

Waiting time caused by site unpreparedness, delays, or restricted access is billed as working time.

The customer is responsible for obtaining all required site access permissions and permits.

You order — we deliver and perform the work on site.

Service Pricing

Rates include:

equipment,

certified operator,

standard operating costs.

Rates do not include:

transportation to and from the job site,

special permits,

tolls or special logistics requirements.

Billing structure:

Hourly rate: $ ___ / hour

Minimum service time: ___ hours

Work outside standard hours: subject to individual agreement

Emergency deployment: surcharge may apply depending on circumstances.

You order — we deliver and perform the work on site.

Equipment Transportation

Equipment is transported to the job site based on distance and project requirements.

Transportation costs are calculated individually according to:

distance,

equipment type,

time requirements,

transportation restrictions.

Standard principle:

Transport is charged from dispatch location to the job site and return.

Actual travel distance or transport time may be applied depending on the project.

For urgent situations, immediate deployment of available equipment can be arranged.

In locations with limited or difficult road access, deployment may require our extended service option, including transportation using specialized AWD Truck Special equipment designed for mud, snow, and water-affected terrain.

You order — we deliver and perform the work on site.

Mobirise Website Builder

For locations with difficult access conditions, we provide extended deployment using specialized AWD transport equipment capable of operating in mud, snow, and water-affected terrain.
